RT3203
- IEEE802.3af compliant
- Input voltage range 36V to 57V
- Integral high efficiency DC/DC converter.
- Low output ripple and noise
- High performance with low price
- Short-circuit protection
- Adjustable Output
- Optional multi-voltage output 9V-12V 18V-24V
- Transformer isolation ,1500V isolation (input to output)
- Easy to use, with a minimum number of external components.
- Rohs compliant
- IEC 61000-4-2 Level 4 (8KV/15KV) ESD protection
- IEC 61000-4-5 Level 3 SURGE LEVEL :10/700μs 40ohm 4KV---Optional
RT3203

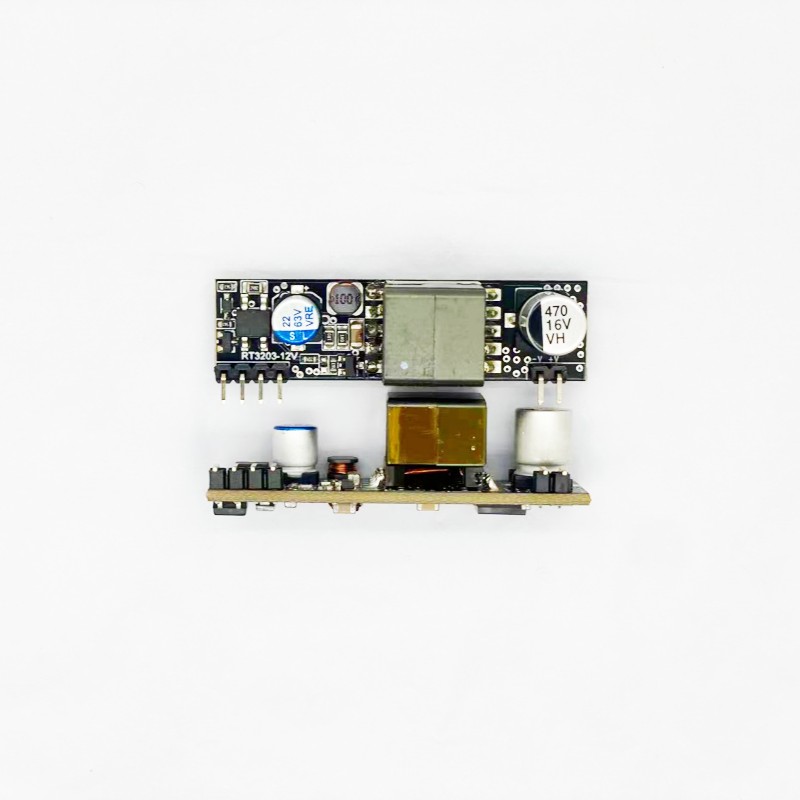

13W POE PD Module ( Isolation Model)
Product Description
Version |
Date |
Author |
Approved By |
Remarks |
V1.0 |
2021/10/14 |
LI xiao yan |
Rock |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
© 2012 Shenzhen Ring&tone Electronic Technology Co., Ltd. All rights reserved.
This document contains proprietary information of ring&tone and is not to be disclosed or used without the prior written permission of ring&tone.
Due to update and improvement of ring&tone products and technologies, information in this document is subjected to change without notice.
Features:
- IEEE802.3af compliant
- Input voltage range 36V to 57V
- Integral high efficiency DC/DC converter.
- Low output ripple and noise
- High performance with low price
- Short-circuit protection
- Adjustable Output
- Optional multi-voltage output 9V-12V 18V-24V
- Transformer isolation ,1500V isolation (input to output)
- Easy to use, with a minimum number of external components.
- Rohs compliant
- IEC 61000-4-2 Level 4 (8KV/15KV) ESD protection
- IEC 61000-4-5 Level 3 SURGE LEVEL :10/700μs 40ohm 4KV---Optional
Applications:
- IP Cameras
- Wireless access point
- Security and alarm systems
- VOIP telephone
- Point of sale network terminal equipment
Description:
The RT3203 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet(PoE) standard.
The RT3203 signature and control circuit provides the PoE compatibility signature and
power classification required by the Power Sourcing Equipment (PSE) before applying up
to 15W power to the port. The RT3203 provides a Class 0 signature.
The DC/DC converter operates over a wide input voltage range and provides a regulated
output. The DC/DC converter also has built-in short-circuit output protection.
- RT3203 Product Selector
Part Number |
Surge Level |
Output Voltage |
Nominal Output current |
Maximum Output Power* |
Marking |
Package |
RT3203 -12V |
|
9V-12V |
1A |
15W** |
12V |
SIL |
RT3203 -24V |
|
18V-24V |
0.5A |
15W** |
24V |
SIL |
RT3203S -12V |
|
9V-12V |
1A |
15W** |
12V |
SIL |
RT3203S -24V |
|
18V-24V |
0.5A |
15W** |
24V |
SIL |
|
|
|
|
|
|
|
RT3203 -12V_4KV |
4KV |
9V-12V |
1A |
15W** |
12V |
SIL |
RT3203 -24V_4KV |
4KV |
18V-24V |
0.5A |
15W** |
24V |
SIL |
RT3203S -12V_4KV |
4KV |
9V-12V |
1A |
15W** |
12V |
SIL |
RT3203S -24V_4KV |
4KV |
18V-24V |
0.5A |
15W** |
24V |
SIL |
*At 25°C with VIN = 48V
** Maximum Output Power: means it not could be operated in continuous stage .only short-term of Boot up/Heavy loading
- Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Units |
1 |
DC Supply Voltage |
VCC |
-0.3 |
60 |
V |
2 |
DC Supply Voltage Surge for 1ms |
VSURGE |
-0.6 |
80 |
V |
3 |
Storage Temperature |
TS |
-40 |
100 |
OC |
Note 1: Exceeding the above ratings may cause permanent damage to the product. Functional operation under these conditions is not implied. Maximum ratings assume free airflow.
- Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typ |
Max |
Units |
1 |
Input Supply Voltage1 |
VIN |
36 |
48 |
57 |
V |
2 |
Under Voltage Lockout |
VLOCK |
30 |
|
36 |
V |
3 |
Operating Temperature2 |
TOP |
-20 |
25 |
70 |
Ta / OC |
|
|
|
|
|
|
|
Note 1: With minimum load
2: See Section Operating Temperature Range
** Extended use close to, or at the maximum operating temperature can reduce the life time of the device.
- Pin Description:
Pin # |
Name |
Description |
1 |
VA1 |
RX Input (1). This input pin is used in conjunction with VA2 and connects to the centre tap of the transformer connected to pins 1&2 of the RJ45 connector (RX) - it is not polarity sensitive. RT3203S this pin is direct Input +. This pin connects to the positive (+) output of the input bridge rectifier. |
2 |
VA2 |
TX Input (2). This input pin is used in conjunction with VA1 and connects to the centre tap of the transformer connected to pins 3&6 of the RJ45 connector (TX) - it is not polarity sensitive. RT3203S this pin is direct Input -. This pin connects to the negative (-) output of the input bridge rectifier. |
3 |
VB1 |
Direct Input (1). This input pin is used in conjunction with VB2 and connects to pin 4 & 5 of the RJ45 connector - it is not polarity sensitive. RT3203S this pin is direct Input +. This pin connects to the positive (+) output of the input bridge rectifier. |
4 |
VB2 |
Direct Input (2). This input pin is used in conjunction with VB1 and connects to pin 7 & 8 of the RJ45 connector - it is not polarity sensitive. RT3203S this pin is direct Input -. This pin connects to the negative (-) output of the input bridge rectifier |
5 |
RA |
Output Adjust resistance. The output voltage can be adjusted from is nominal value, by connecting an external resistor from this pin |
6 |
RB |
|
7 |
-VDC |
DC Return. This pin is the return path for the +VDC output. |
8 |
+VDC |
DC Output. This pin provides the regulated output from the DC/DC converter. |
- DC Electrical Characteristics
|
DC Characteristic |
Sym |
Min |
Typ1 |
Max |
Units |
Test Comments |
1 |
Nominal Output Voltage |
VDC+ |
11.5 |
|
|
V |
RT3203-12V |
2 |
Output Current (VIN = 48V) |
PWR |
|
|
1.0 |
A |
RT3203-12V |
3 |
Line Regulation |
VLINE |
|
2 |
|
% |
@ 50% Load |
4 |
Load Regulation |
VLOAD |
|
2 |
|
% |
@ VIN=48V |
5 |
Output Ripple and Noise |
VRN |
|
100 |
|
mVp-p |
@ Max load2 |
6 |
Minimum Load |
RLOAD |
100 |
|
|
mA |
RT3203-12V |
7 |
Short-Circuit Duration3 |
TSC |
|
|
∞ |
sec |
|
8 |
Efficiency @ 80% Load |
EFF |
|
87 |
|
% |
RT3203-12V |
9 |
Isolation Voltage (I/O) |
VISO |
|
1500 |
|
VPK |
Impulse Test |
10 |
Temperature Coefficient |
TC |
|
0.02 |
|
% |
Per OC |
Note 1: Typical figures are at 25°C with a nominal 48V supply and are for design aid only. Not Guaranteed
2: The output ripple and noise can be reduced with an external filter, see application note.
3: Continuous short circuit duration is applicable at 25'C ambient temperature in free air. At higher temperatures or with restricted airflow (e.g. in a sealed enclosure) the duration will need to be limited to avoid overheating.
- RT3203S Typical Connection Diagram :
- RT3203 Typical Connection Diagram :
-
- Reliability MTBF:
About the life time ,we design according to the following:
1) life time of RT3203 : 100,000 hours @ 25°C
2) RT3203 use a Aluminum Electrolytic Capacitors Life Calculation:2000 hour@105 degree
- Safety test items & test report
Test Requested
Test result
Electric strength -1500Vrms at 50 to 60Hz for 60s, applied as specified in subclasuse 5.2.2 of IEC 60950
Pass
- Mechanical / Environmental Performance data
Mechanical / Environmental Performance data
Item
Requirement and Standard
1
Resistance to Wave Soldering Heat
max Preheat Temp range & time 120 ℃ / 180S
max soldering temp &time:265 ℃ / 4S2
Solder ability
Solder able area shall have minimum of 95% solder coverage.
And then into solder bath,Temperature at 245 ±5 ℃ , for 4-5sec.3
Hand Soldering Temperature Resistance
T > =350 ℃ , 3sec at least.
4
Thermal Shock
subject to follow condition for 5 cycles.1 cycles:
-55 ℃ , 30 minutes
+85 ℃ , 30 minutes5
Humidity(Temp Cycling)
less than 95% (non-condensing) ( -20 to 70 ℃)
6
Temperature Life
temperature life at 85℃ for 96 hours.
7
Salt Spray
connectors to 5% salt-solution concentration, 35 ℃
Gold flash for 8 hours there will be no change in the gold layerRT3203 Package Size: (mm ) SILA
-
-
- RT3203 Package Size: (mm ) SILB
-
- Packaging type & Quantity
EPE or BLASTIC Packaging,
55pcs/ dish
550pcs/box Box size 30*35*20cm 7KG/box
