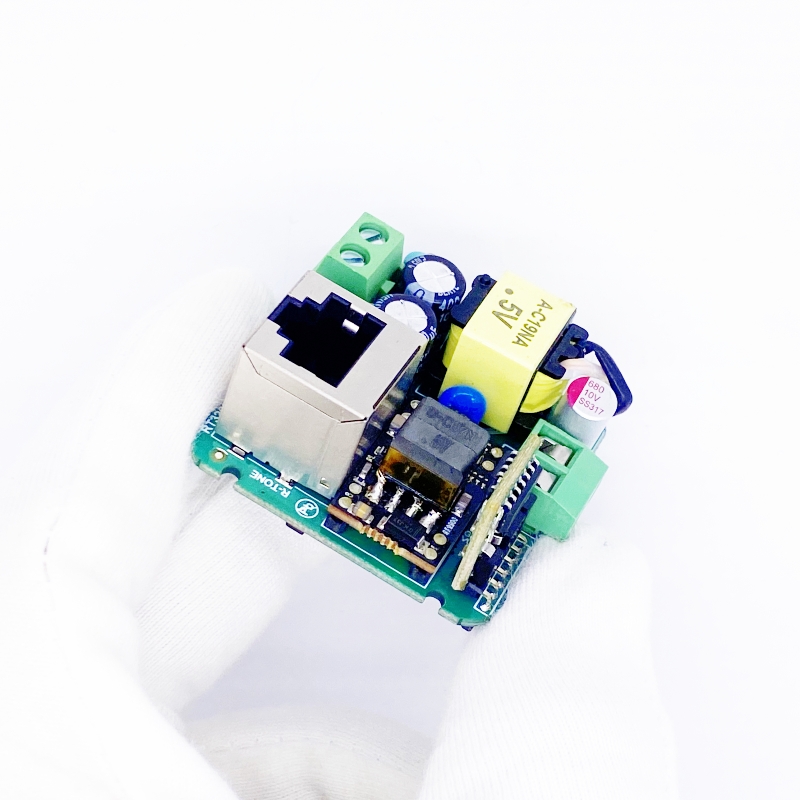

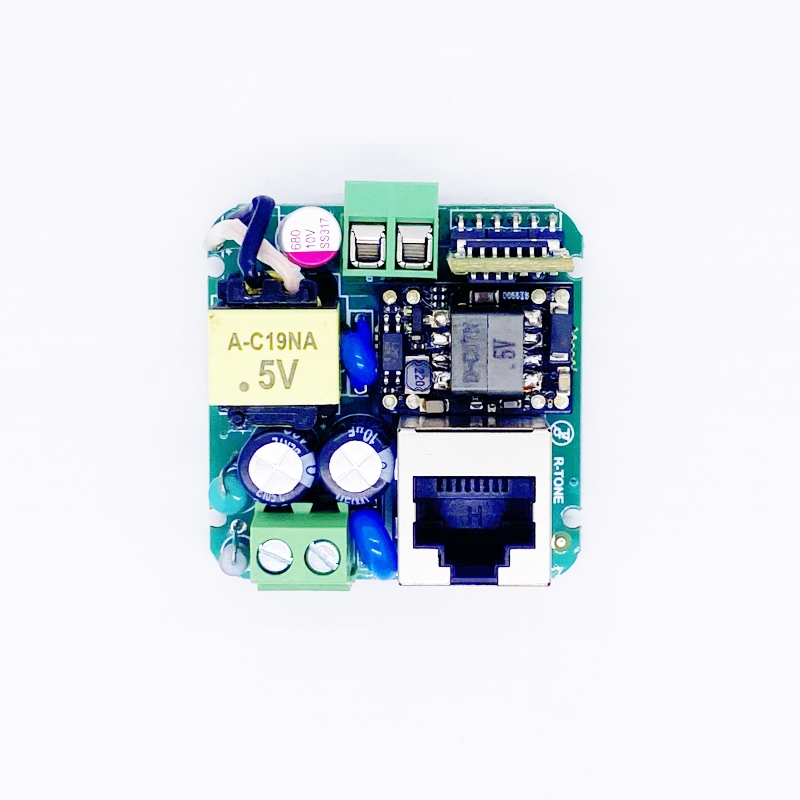

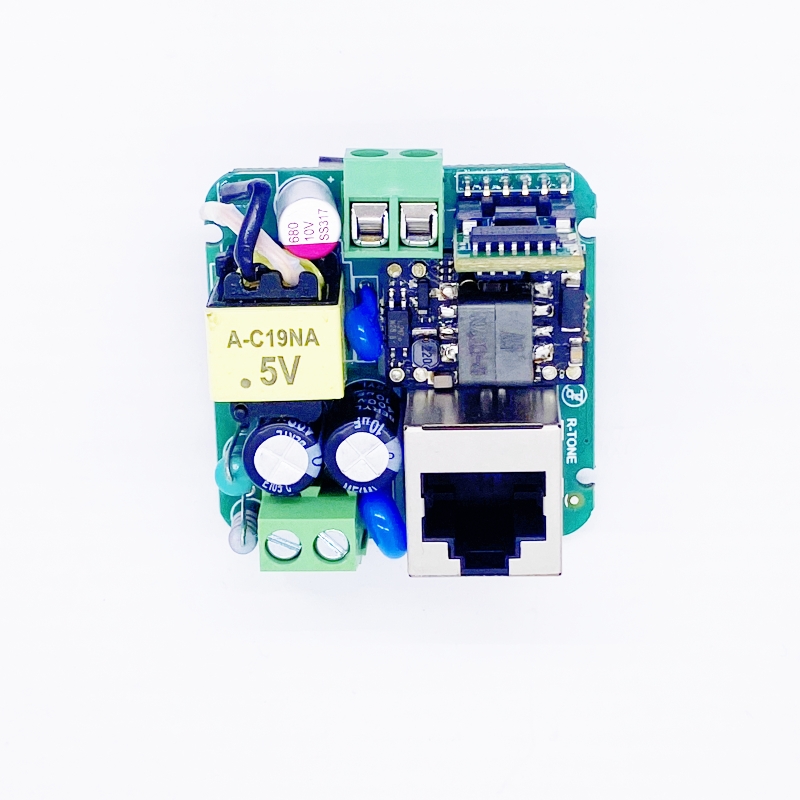

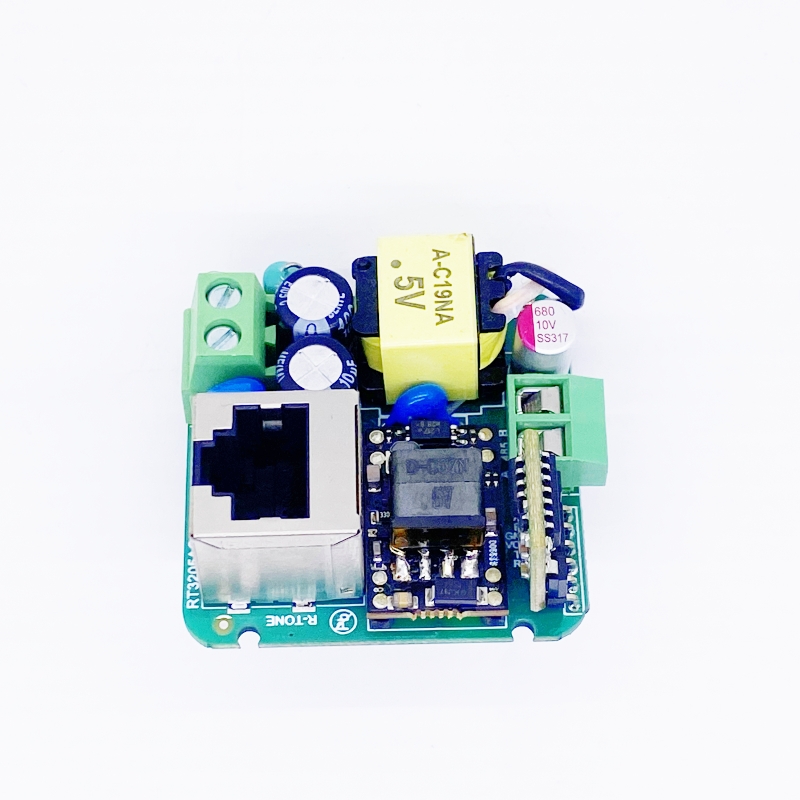

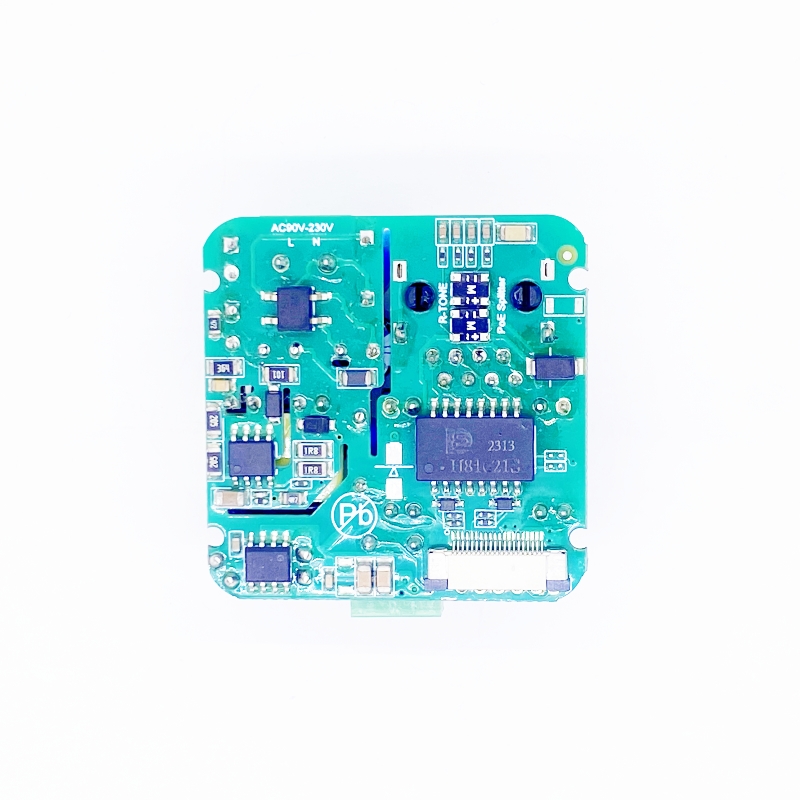

RT3205AC

ACDC and POE and 485

Features :

• IEEE802.3af compliant
• Integrated LAN Filters
• Integrated ACDC, POE ,485
• Low output ripple and noise
• Wide Input voltage range
• Overload and short-circuit protection
• 1500V isolation (input to output)
• Simple installation
• CE and FCC part 15 certified

• Description:

The RT3205AC series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet(PoE) standard.

The RT3205AC signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The RT3205AC  provides a Class 0 signature.

The RT3205AC DC/DC converter operates over a wide input voltage range and provides a regulated output. The DC/DC converter also has built-in short-circuit output protection.

• Application:
• IP Cameras
• Wireless access point
• Security and alarm systems
• VOIP telephone
• Point of sale network terminal equipment

• Connector and Pin

Package Size:
