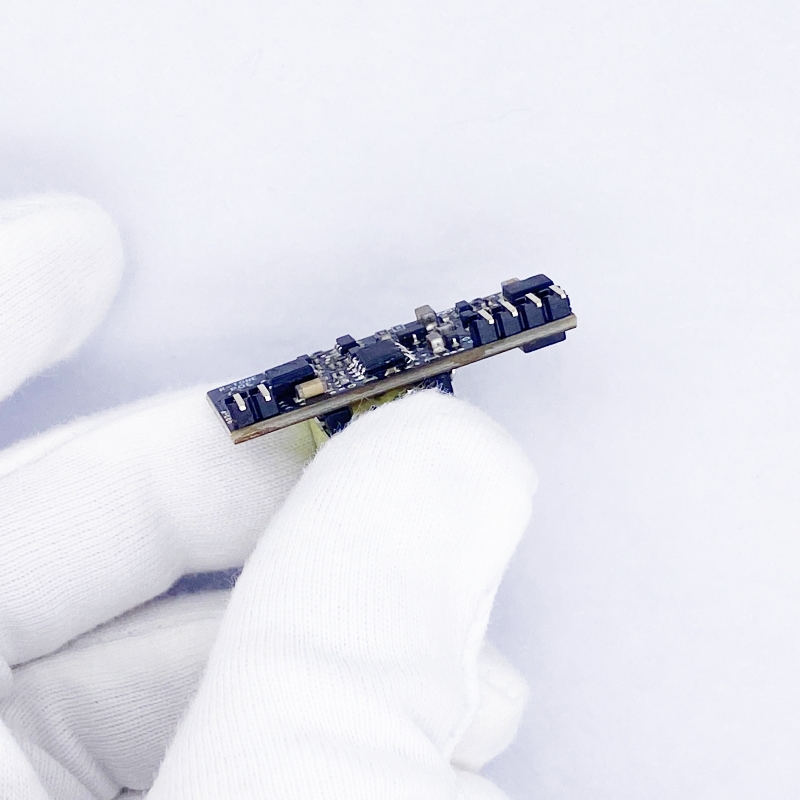

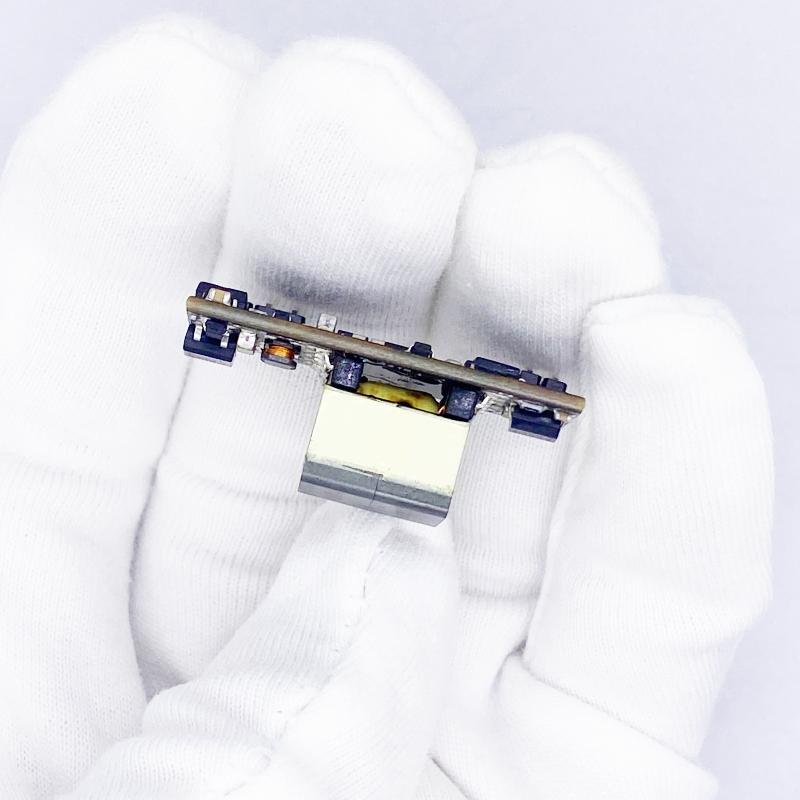

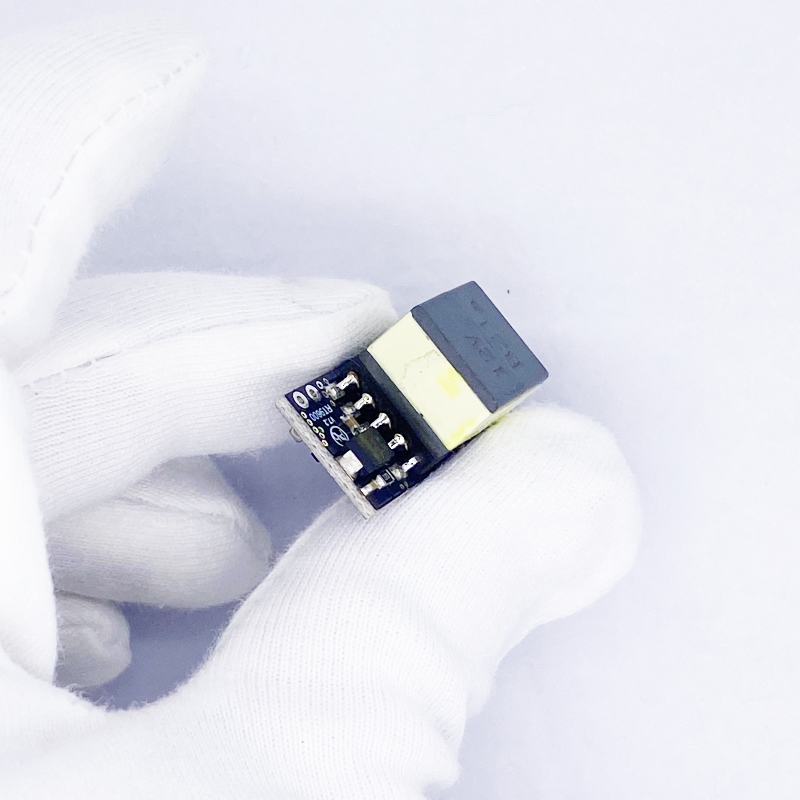

RT9600 3.3V 5V 12V 24V
The RT9600 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet(PoE) standard.
The RT9600 signature and control circuit provides the PoE compatibility signature and
power classification required by the Power Sourcing Equipment (PSE) before applying up
to 15W power to the port. The RT9600 provides a Class 0 signature.
The DC/DC converter operates over a wide input voltage range and provides a regulated
output. The DC/DC converter also has built-in short-circuit output protection.
Related products
RT9600
12W POE PD Module ( Isolation Model)
Product Description
|
Version |
Date |
Author |
Approved By |
Remarks |
|
V1.0 |
2013/10/14 |
LI xiao yan |
Rock |
|
|
V4.3 |
2014/12/01 |
LI xiao yan |
Rock |
|
|
|
|
|
|
|
|
|
|
|
|
|
© 2012 Shenzhen Ring&tone Electronic Technology Co., Ltd. All rights reserved.
This document contains proprietary information of ring&tone and is not to be disclosed or used without the prior written permission of ring&tone.
Due to update and improvement of ring&tone products and technologies, information in this document is subjected to change without notice.
Features：
- IEEE802.3af compliant
- Input voltage range 36V to 57V
- Integral high efficiency DC/DC converter.
- Low output ripple and noise
- High performance with low price
- Short-circuit protection
- Adjustable Output
- Optional multi-voltage output 3.3V 5V 12V 24V
- Transformer isolation ,1500V isolation (input to output)
- Easy to use, with a minimum number of external components.
Applications：
- IP Cameras
- Wireless access point
- Security and alarm systems
- VOIP telephone
- Point of sale network terminal equipment
Description：
The RT9600 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet(PoE) standard.
The RT9600 signature and control circuit provides the PoE compatibility signature and
power classification required by the Power Sourcing Equipment (PSE) before applying up
to 15W power to the port. The RT9600 provides a Class 0 signature.
The DC/DC converter operates over a wide input voltage range and provides a regulated
output. The DC/DC converter also has built-in short-circuit output protection.
- RT9600 Product Selector
|
Part Number |
Nominal Output Voltage |
Maximum Output Power* |
Marking |
Package |
|
RT9600-3.3V |
3.3V |
6.6W |
3.3V |
SIL |
|
RT9600 -5V |
5V |
10W |
5V |
SIL |
|
RT9600 -12V |
12V |
12W |
12V |
SIL |
|
RT9600 -24V |
24V |
12W |
24V |
SIL |
*At 25°C with VIN = 48V
- Pin Description:
|
Pin # |
Name |
Description |
|
1 |
VA1 |
RX Input (1). This input pin is used in conjunction with VA2 and connects to the centre tap of the transformer connected to pins 1 & 2 of the RJ45 connector (RX) - it is not polarity sensitive. |
|
2 |
VA2 |
TX Input (2). This input pin is used in conjunction with VA1 and connects to the centre tap of the transformer connected to pins 3 & 6 of the RJ45 connector (TX) - it is not polarity sensitive. |
|
3 |
VB1 |
Direct Input (1). This input pin is used in conjunction with VB2 and connects to pin 4 & 5 of the RJ45 connector - it is not polarity sensitive. |
|
4 |
VB2 |
Direct Input (2). This input pin is used in conjunction with VB1 and connects to pin 7 & 8 of the RJ45 connector - it is not polarity sensitive. |
|
5 |
-VDC |
DC Return. This pin is the return path for the +VDC output. |
|
6 |
+VDC |
DC Output. This pin provides the regulated output from the DC/DC converter. |
- Absolute Maximum Ratings
|
|
Parameter |
Symbol |
Min |
Max |
Units |
|
1 |
DC Supply Voltage |
VCC |
-0.3 |
60 |
V |
|
2 |
DC Supply Voltage Surge for 1ms |
VSURGE |
-0.6 |
80 |
V |
|
3 |
Storage Temperature |
TS |
-40 |
100 |
OC |
Note 1: Exceeding the above ratings may cause permanent damage to the product. Functional operation under these conditions is not implied. Maximum ratings assume free airflow.
- Recommended Operating Conditions
|
|
Parameter |
Symbol |
Min |
Typ |
Max |
Units |
Units |
|
1 |
Input Supply Voltage1 |
VIN |
36 |
48 |
57 |
V |
V |
|
2 |
Under Voltage Lockout |
VLOCK |
30 |
|
36 |
V |
V |
|
3 |
Operating Temperature2 |
TOP |
-20 |
25 |
70 |
Ta / OC |
RT9600 |
|
|
|
|
|
|
|
|
|
Note 1: With minimum load
2: See Section Operating Temperature Range
** Extended use close to, or at the maximum operating temperature can reduce the life time of the device.
- DC Electrical Characteristics
|
|
DC Characteristic |
Sym |
Min |
Typ1 |
Max |
Units |
Test Comments |
|
1 |
Nominal Output Voltage |
+VDC |
3.1 |
3.3 |
3.5 |
V |
RT9600-3.3V |
|
2 |
Output Current (VIN = 48V) |
PWR |
|
|
2 |
A |
|
|
3 |
Line Regulation |
VLINE |
|
0.1 |
|
% |
@ 50% Load |
|
4 |
Load Regulation |
VLOAD |
|
1 |
|
% |
@ VIN=48V |
|
5 |
Output Ripple and Noise |
VRN |
|
100 |
|
mVp-p |
@ Max load2 |
|
6 |
Minimum Load |
RLOAD |
200 |
|
|
mA |
RT9600-3.3V |
|
7 |
Short-Circuit Duration3 |
TSC |
|
|
∞ |
sec |
|
|
8 |
Efficiency @ 80% Load |
EFF |
|
79 |
|
% |
RT9600-3.3V |
|
9 |
Isolation Voltage (I/O) |
VISO |
|
1500 |
|
VPK |
Impulse Test |
|
10 |
Temperature Coefficient |
TC |
|
0.02 |
|
% |
Per OC |
Note 1: Typical figures are at 25°C with a nominal 48V supply and are for design aid only. Not Guaranteed
2: The output ripple and noise can be reduced with an external filter, see application note.
3: Continuous short circuit duration is applicable at 25'C ambient temperature in free air. At higher temperatures or with restricted
airflow (e.g. in a sealed enclosure) the duration will need to be limited to avoid overheating.
- RT9600 Typical Connection Diagram:
