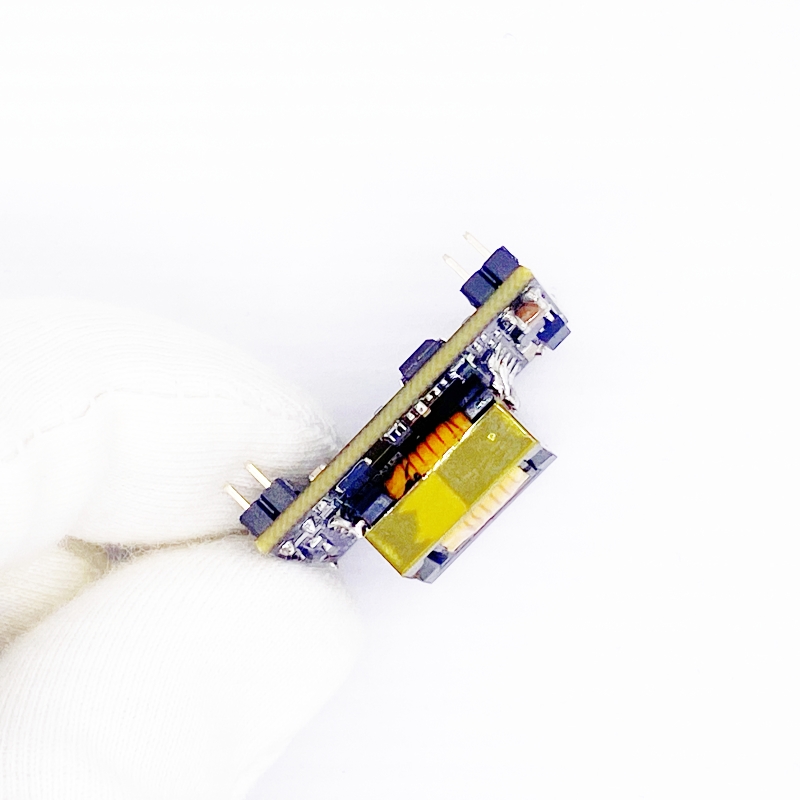

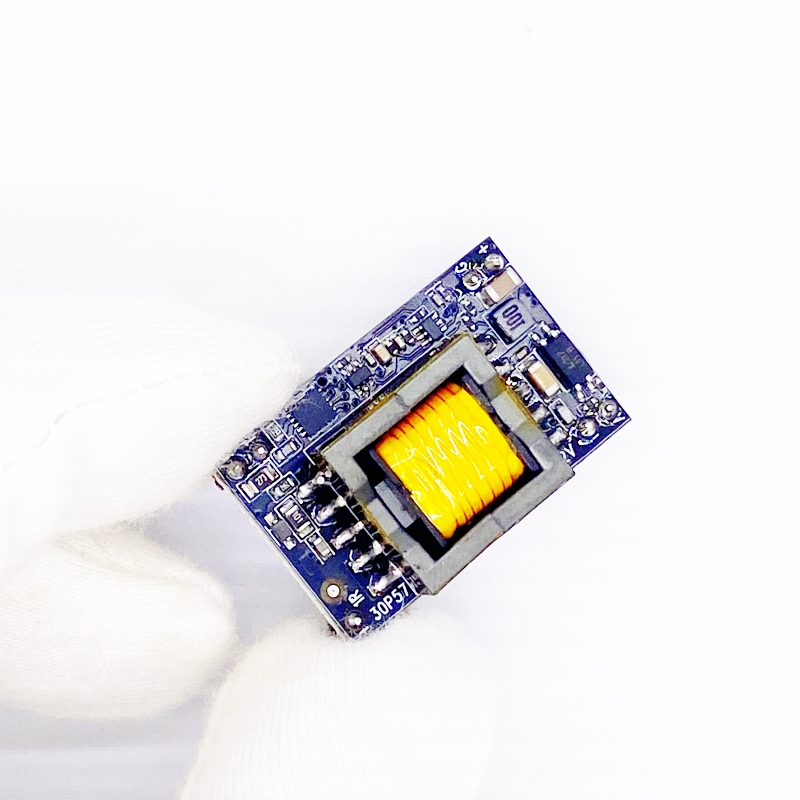

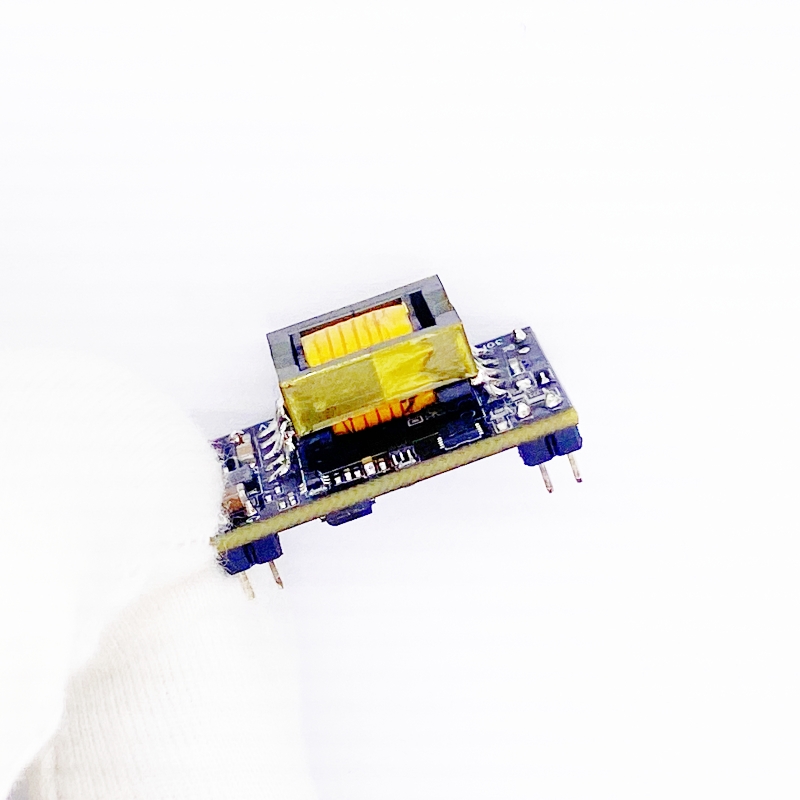

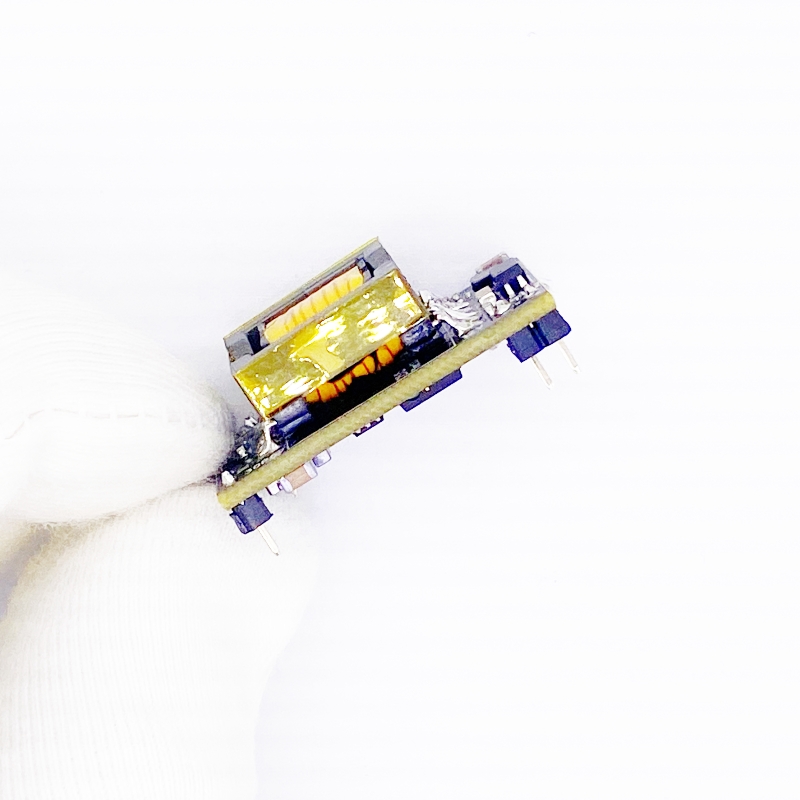

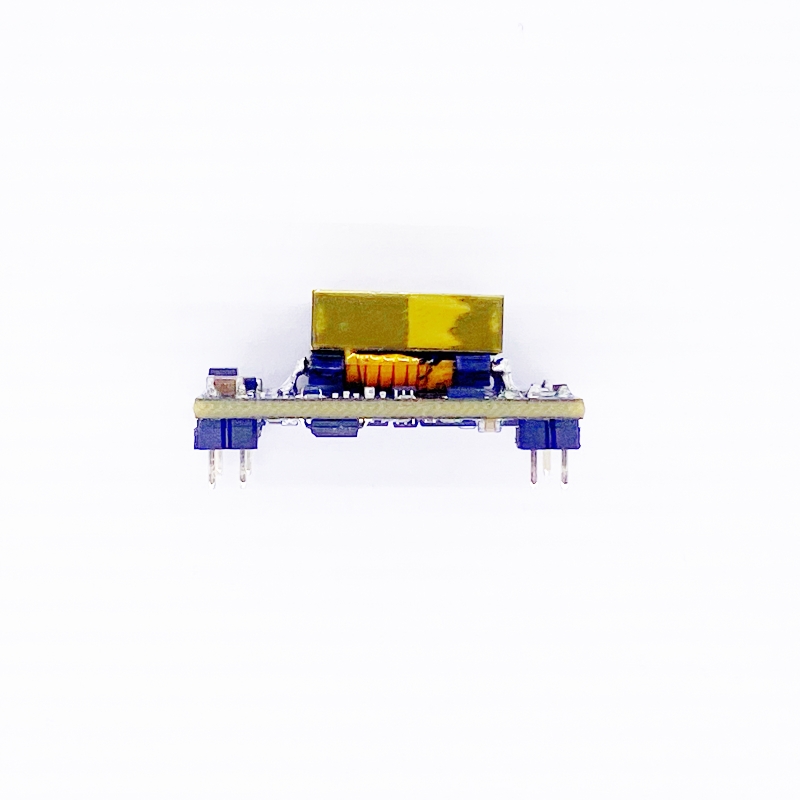

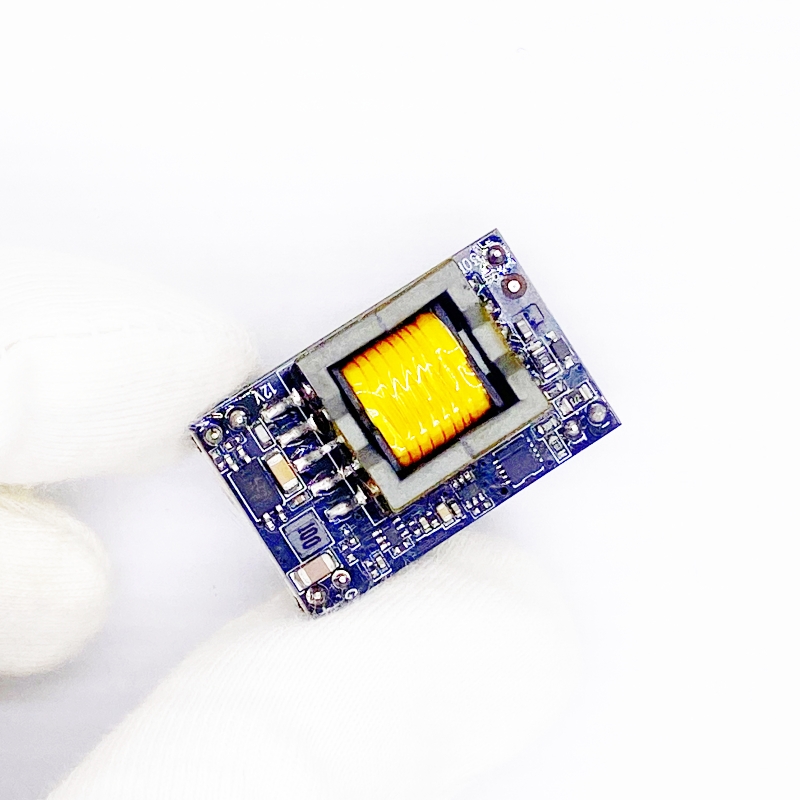

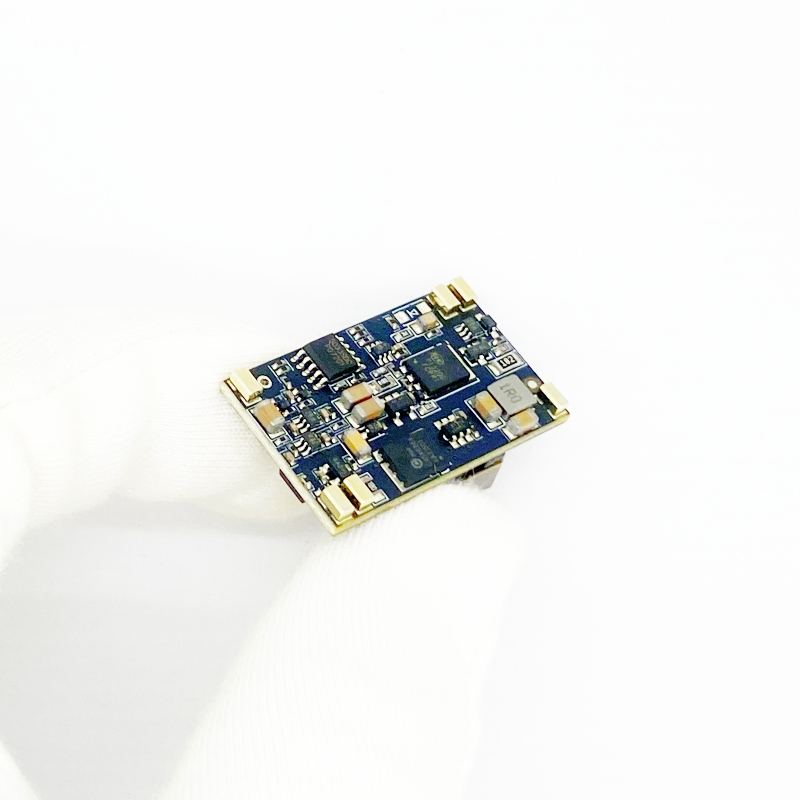

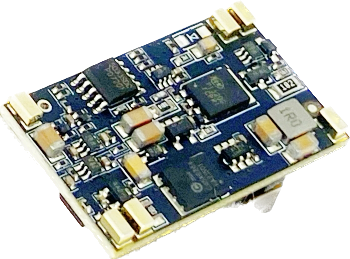

RT30P57

Miniaturised POE PD Module ( Isolation Model)

Product Description

·IEEE802.3af at compliant

·Input voltage range 36V to 57V

·Integral high efficiency DC/DC converter.

·High performance with low price, Industrial temperature option

·Short-circuit protection

·Adjustable Output

·Optional multi-voltage output  12V 24V

·Transformer isolation  ,1500V isolation (input to output)

·Easy to use, with a minimum number of external components.

·Rohs compliant

·IP Cameras

·Wireless access point

·Security and alarm systems

·VOIP telephone

·Point of sale network terminal equipment

    The RT30P57 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af at Power-over-Ethernet(PoE) standard.

The RT30P57 signature and control circuit provides the PoE compatibility signature and

power classification required by the Power Sourcing Equipment (PSE) before applying up

to 15W (af) 30w (at) power to the port. The RT30P57  provides a Class 4 signature.

The DC/DC converter operates over a wide input voltage range and provides a regulated

output. The DC/DC converter also has built-in short-circuit output protection.
