RT0805&RT0805B

  • Single supply voltage ring slic: +3.3V to +5.0V
  • Integral high efficiency DC/DC converter.
  • Highly integrated with ringing generator.
  • Tip/Ring polarity reversal.
  • 2 / 4 wire conversion
  • Constant current feed
  • High performance with low price
  • Excellent sound quality
  • On-Hook Transmission for caller line ID.
  • Designed for GSM network
  • Easy to use, with a minimum number of external components.



Related products




Features

  • Single supply voltage ring slic: +3.3V to +5.0V
  • Integral high efficiency DC/DC converter.
  • Highly integrated with ringing generator.
  • Tip/Ring polarity reversal.
  • 2 / 4 wire conversion
  • Constant current feed
  • High performance with low price
  • Excellent sound quality
  • On-Hook Transmission for caller line ID.
  • Designed for GSM network
  • Easy to use, with a minimum number of external components.



Applications

  • Fixed Cellular Terminals (FCT) applications.
  • POS MODEM applications
  • Internet Telephony (VoIP) applications.
  • Fixed Wireless Terminals (FWT) applications.
  • DVB Terminals applications.
  • Wireless local loop (WLL) applications.
  • GSM gateway

Index

  • unbalanced to ground 60dB(300Hz-3400Hz)
  • Two- Wire Impedance 600R
  • Four-wire return loss >24Db
  • weighted noise -75dB
  • Ringing voltage 130VP-P
  • Constant current  23-31mA
  • Supply Voltage 3.2V-5.5VDC

Description

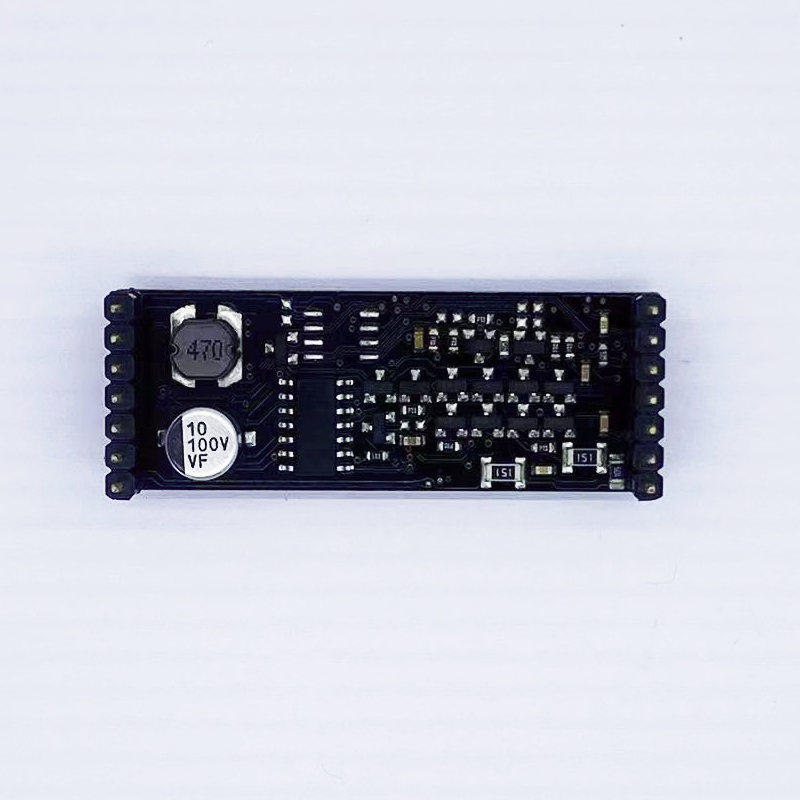

The R-TONE RT0805 is a single Subscriber Line Interface Circuit (SLIC).

The combination of features and packaging offers extremely efficient use of board area, saving  significant system size and cost, minimising time to market for Telephony Systems developers.

The RT0805 has been designed to work with loop lengths of typically 1.0km

The RT0805 has integral dc/dc converter and ringing generation thus providing all the line powering requirements from a single supply.24V(off-hook)and 48V(on-hook)and 75V(ringing).

The RT0805 requires a minimum of external components, making it ideal for low line count, short loop length applications, such as WLL Terminal (WLL), Fixed Cellular Terminals (FCT), Fixed Wireless Terminals (FWT) and Internet Telephony (VoIP).



The RT0805 has an integral DC/DC converter, which generates the battery voltage in the device.  This means that only a single supply of between +3.3V to +5.0V is needed, unlike conventional SLICs which will also need a battery voltage of anything between 20V and60V ( 75V for ringing).  This confers a significant cost, space and time to market benefit on the equipment designer.



  • Absolute Maximum Ratings



Parameter

Symbol

Min

Max

Units

1

DC Supply Voltage

VCC

-0.3

5.5

V

2

Maximum Power Dissipation, Off Hook @ 25oC

PSLIC



1.2

W

3

Operating Temperature

TOP

0

70

OC

4

Storage Temperature

TS

-40

+100

OC



  • DC Electrical Characteristics*

Characteristic

Sym

Min

Typ

Max

Units

Test Comments







Supply Current





ICC



40

50



mA



5V  (on-hook)

3.3V(on-hook)



175

280



mA

5V  (off-hook)

3.3V(off-hook)

during ring



180

220



mA

5V  (during ring)

3.3V(during ring)











Constant current

Ibat

21

23

35

mA



Power Dissipation

Pd



30/850





mW



On/off hook (during 23mA Constant current)

Ringing voltage

Ving



130



VP-P



off-hook voltage

Vab



48



V





Supply current in power down



IPD



7

5



mA

mA

@ 5.0V

@ 3.3V

All DC Electrical Characteristics are over the Recommended Operating Conditions with VCC at +5.0V +1%,or +3.3V +1%, unless

otherwise stated.

2) Operating currents are dependent on the users application.

*Typical figures are at 25°C and are for design aid only. Not Guaranteed

  • AC Electrical Characteristics*

Characteristic

Sym

Min

Typ

Max

Units

Test Comments

Two- Wire Impedance

Z0



600



Ω



Absolute Voltage Gain

T,R-VX

VR-T,R

-6

-6

0

0

6

6

dB



Relative Gain. Referenced to 1kHz

Gf

-0.5



+0.5

dB

Over frequency range 300 to

3400 Hz

Two-wire return loss

RL

30





dB

300-3400HZ,600R load

Four-wire return loss

THL

30





dB

300-3400HZ, 600R load

unbalanced to ground



60





dB

300-3400HZ,off-hook

common-mode rejection ratio

CMRR

45

55



dB



weighted noise



-75





dB



total harmonic distortion

THD

70





dB

300-3400HZ,off-hook

This applies to 3 phones with tone ringers or 2 phones with mechanical bells.

*Typical figures are at 25°C and are for design aid only.

  • Pin Description:

Pin #

Name

Description



1



F/R

Forward/Reverse.  A logic (L) will reverse the Tip and Ring voltage polarities.

2

25HZ

ringing frequency. to give the correct waveform with 20Hz to 25Hz ringing frequency.



3



RM

Ringing Mode. Sets bias conditions during ringing. Must be set to logic (H) during ringing. Logic (L) for other modes.

4

SHK

Switch Hook. Indicates an off-hook condition when at logic (H).

5



PD

Power Down DC/DC Converter. A logic (L) on this pin powers down the RT0805.  DO NOT put logic (H) on this pin.

6

GNDPWR

DC/DC Ground.  Ground input for the DC/DC converter.

7

+VPWR

DC/DC Supply.  +5.0V or +3.3V input for the DC/DC converter.

8

Vbat

VBAT , connect a cap 33uf 100v.

9



VR

Audio In. Analog input signal from the Codec (which is output onTip and Ring).  Connect via a 100nF capacitor

10



VX

Audio Out. This is the analog output signal (from Tip and Ring)

to the Codec.  Connect via a 100nF capacitor.

11

NC

No Connection.  Do not connect to this pin.

12

NC

No Connection.  Do not connect to this pin.

13

RING (B)

Ring. Connects to the subscriber line Ring.



14

TIP (A)

Tip. Connects to the subscriber line Tip.



  • RT0805 Typical Connection Diagram:







1 Ringing

The ringing signal is generated by switching the SLIC into ringing mode, by setting the RM pin high, and  then toggling the F/R pin or 25Hz pin at the required frequency and cadence. The toggling  of  the  F/R  pin  produces  a  balanced  signal  at  Tip  and  Ring.

During ringing the integral DC/DC converter is switched produce a battery voltage of  75V.The  slope of the edges on the ringing waveform is set internally to give the correct waveform with 20Hz to 25Hz ringing frequency.

2 Tip & Ring Polarity Reversal

If F/R is held at logic (H) (Forward) the d.c. voltage at Ring is negative with respect to Tip. If F/R is taken to logic (L) (Reverse) the voltage at Ring is positive with respect to Tip.

3 Switch Hook Detection

When an “off-hook” condition occurs during ringing, the ring-trip circuit on the RT0805 senses the loop current flowing and signals the off-hook condition on the SHK output. The SHK signal must be “de-bounced” (by the controlling processor) for 10ms to remove any spurious  pulses.

  • RT0805 Product Selector



Marking

Supply Voltage (V)

Constant current feed to line (mA)

Gain  2 Wire to VOUT

Gain VIN to 2Wire

Ringing voltage (Vp-p)

Supply Current, on-hook (mA)

Supply current, off-hook
(mA)

Ringing Load (REN)

Package

RT0805B

3.2~5.5

23~31

-6dB

6dB

120~135

50-35

310-270

3

SIL























  • Package(mm ±3mm )
