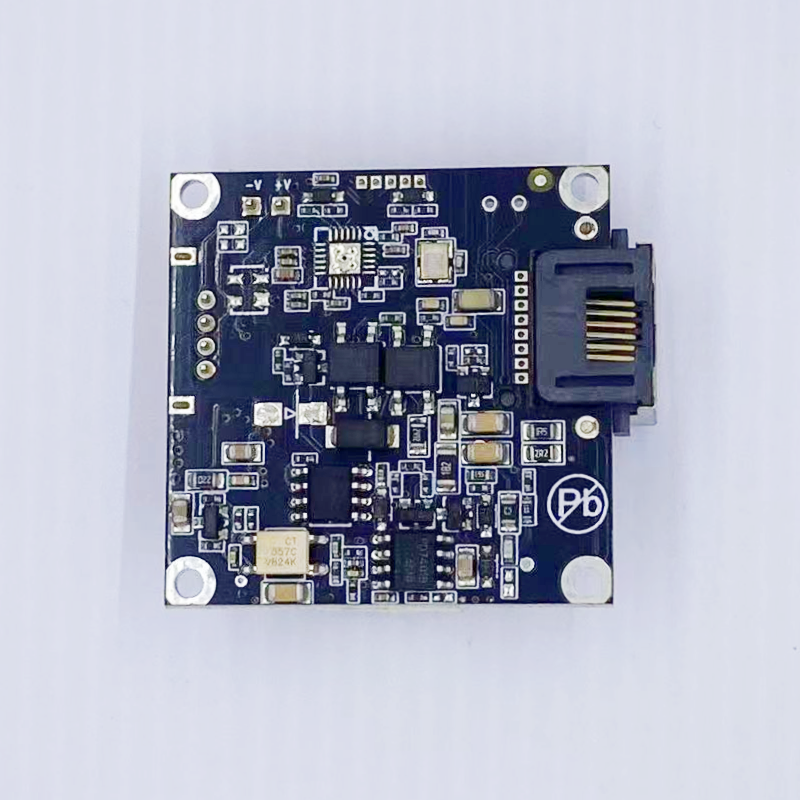

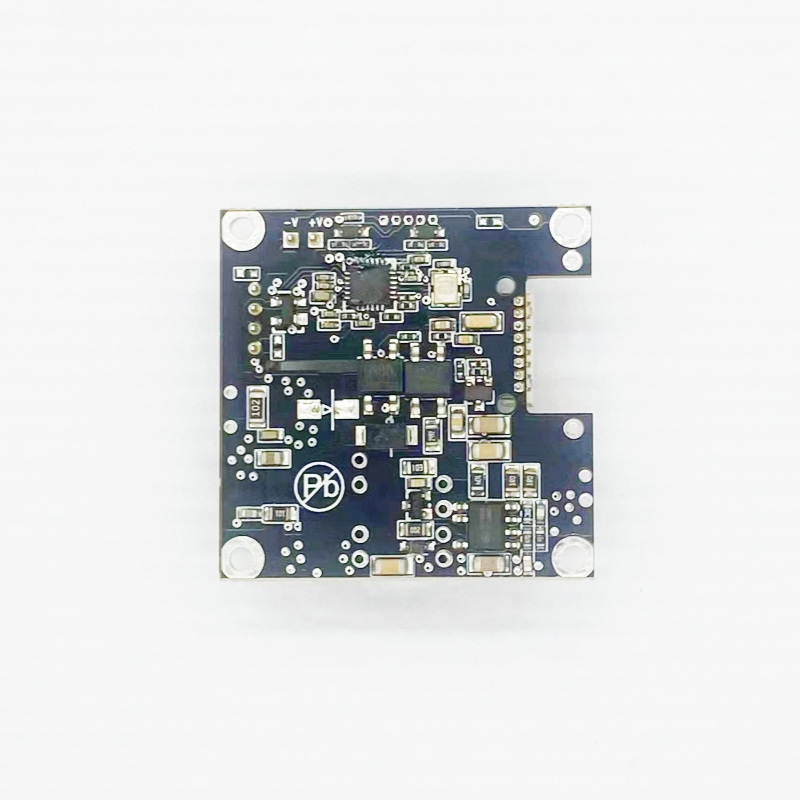

RT7805

 POE to USB 2.0 Moudule ( Isolation Model)

Product Description

Features：

• IEEE802.3AF compliant
• Integrated 100M LAN Filters
• Integrated USB 2.0 IC (RTL8152B or SR9900)
• Input voltage range 36V to 57V
• Integral high efficiency DC/DC converter.
• Low output ripple and noise
• High performance with low price
• Short-circuit protection
• Adjustable Output
• Optional multi-voltage output 5V 12V 24V
• Transformer isolation,1500V isolation (input to output)
• Easy to use, with a minimum number of external components.
• Rohs compliant

Applications：

• IP Cameras
• Wireless access point
• Security and alarm systems
• VOIP telephone
• Point of sale network terminal equipment

Description：

The RT7805 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet(PoE) standard.

The RT7805 signature and control circuit provides the PoE compatibility signature and

power classification required by the Power Sourcing Equipment (PSE) before applying up

to 15W power to the port. The RT7805  provides a Class 0 signature.

The DC/DC converter operates over a wide input voltage range and provides a regulated

output. The DC/DC converter also has built-in short-circuit output protection.

USB2.0：

Integrated Single-Chip USB 2.0 to 10/100M Ethernet Controller, RTL8152B or SR9900,Supports USB 2.0 and 1.1

For more details, please visit the manufacturer website.

RTL8152B http://www.realtek.com

SR9900 http://www.corechip-sz.com

• RT7805  Product Selector

*At 25°C with VIN = 48V

** Maximum Output Power: means it not could be operated in continuous stage .only short-term of Boot up/Heavy loading

• Pin Description:

• Absolute Maximum Ratings

Note 1: Exceeding the above ratings may cause permanent damage to the product. Functional operation under these conditions is not implied. Maximum ratings assume free airflow.

• Recommended Operating Conditions

Note 1: With minimum load

     2: See Section Operating Temperature Range

      ** Extended use close to, or at the maximum operating temperature can reduce the life time of the device.

• DC Electrical Characteristics

Note 1: Typical figures are at 25°C with a nominal 48V supply and are for design aid only. Not Guaranteed

     2: The output ripple and noise can be reduced with an external filter, see application note.

     3: Continuous short circuit duration is applicable at 25'C ambient temperature in free air. At higher temperatures or with restricted airflow (e.g. in a sealed enclosure) the duration will need to be limited to avoid overheating.

• RT7805_RJ45  Typical Connection Diagram:

• RT7805_USB  Typical Connection Diagram:

• Reliability MTBF:

About the life time ,we design according to the following:

1.  life time of RT7805  : 100,000 hours @ 25°C

• Safety test items & test report

• RT7805 PackageSize： (mm )

• RT7805 PCB Decal ： (mm  )
