RT76812

 36W BT POE Ultra Module ( Isolation Model)

Product Description

© 2024 Shenzhen Ring&tone  Electronic Technology Co., Ltd. All rights reserved.

This document contains proprietary information of ring&tone and is not to be disclosed or used without the prior written permission of ring&tone.

Due to update and improvement of ring&tone products and technologies, information in this document is subjected to change without notice.

Features：

• IEEE802.3af ,IEEE802.3at ,IEEE802.3bt(Draft V3.2) compliant
• Maximum 36W 12v or 24voutput power
• Input voltage range 52V to 57V(36W) ,
• Integral high efficiency DC/DC converter.
• Low output ripple and noise
• High performance with low price
• Short-circuit protection
• Transformer isolation ,1500V isolation (input to output)
• Easy to use, with a minimum number of external components.
• IEC 61000-4-2 Level 4 (8KV/15KV) ESD protection
• IEC 61000-4-5 Level 3 SURGE LEVEL :10/700μs 40ohm 4KV---Optional

Applications：

• IP Cameras
• Wireless access point
• Security and alarm systems
• Point of sale network terminal equipment

Description：

The RT76812 signature and control circuit provides the PoE compatibility signature and

power classification required by the Power Sourcing Equipment (PSE) before applying up

to 36W power to the port. It has been designed to work with existing high power PSE’s from leading manufacturers.

The DC/DC converter operates over a wide input voltage range and provides a regulated

output. The DC/DC converter also has built-in short-circuit output protection.

• RT76812-CON Typical Connection Diagram 1000M Ethernet :
•
  • Power Classification

• The RT76812 is Type 4 - Class 8 PD requesting the highest nominal amount of power from an IEEE802.3bt PSE  If the RT76812 is connected to an IEEE802.3at PSE, the PSE will recognise the initial Class 4 pulse from the as a Type 2 PD and provide ~25W.

  • PD Signature

  The RT76812 input complies with the IEEE802.3af specification. When the inputs are connected to a Power Sourcing Equipment (PSE), they will automatically present a Powered Device (PD) signature to the PSE (when requested). The equipment will then recognise that a PD is connected to that line and supply power.

  • Operating Temperature Range

  It is important to remember that RT76812 is a power supply, and as such careful consideration should be taken over the mechanical design of the host product, with provision for heat sinking and/or forced air cooling.

  At full power the RT76812 will generate heat. The device has been designed to be used with heatsink plate or thermally connected to the chassis of the host equipment, or cooled with forced air.

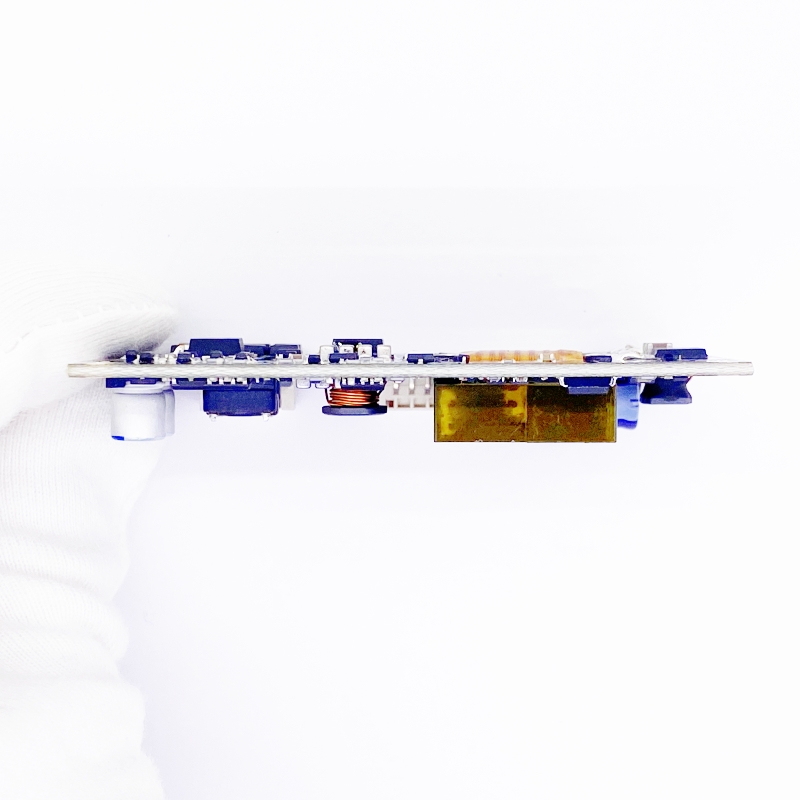

• Package ： (mm   ±3mm )
•
•
