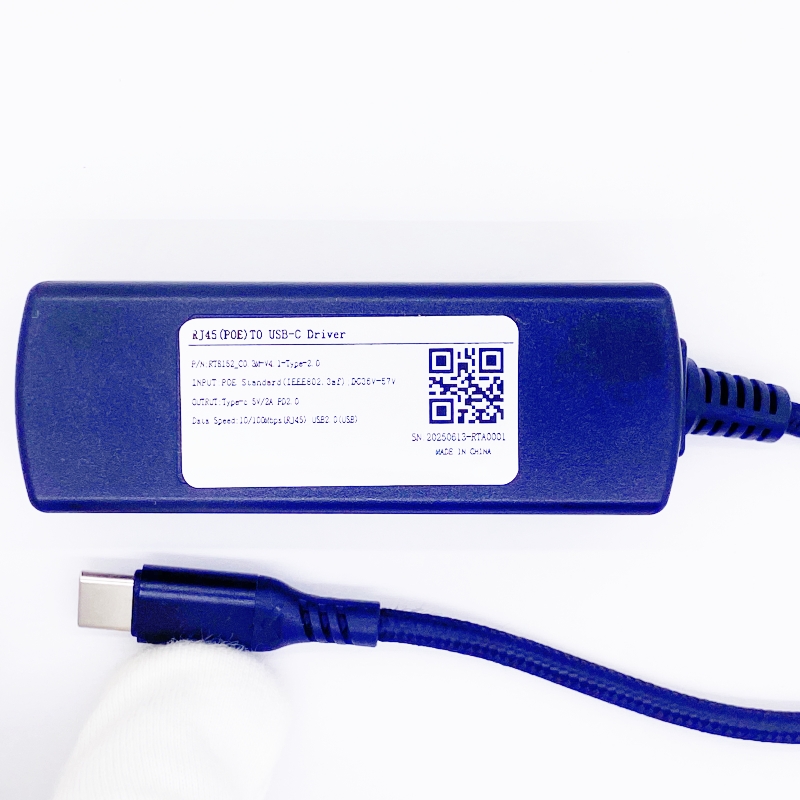

RT8152 RJ45(POE) To USB-C Driver
- Integrated 100M LAN Filters
Integrated USB IC (RTL8152B)
Supports USB 2.0 and 1.1
- Put out 5V/2A
- Support USB PD 2.0, compatible USB PD 3.0.
- Low output ripple and noise
- Overload and short-circuit protection
- 1500V isolation (input to output)
- Enables PoE functionality for type c products
RT8152
RJ45(POE) To USB-C Driver
- Integrated 100M LAN Filters
Integrated USB IC (RTL8152B)
Supports USB 2.0 and 1.1
- Put out 5V/2A
- Support USB PD 2.0, compatible USB PD 3.0.
- Low output ripple and noise
- Overload and short-circuit protection
- 1500V isolation (input to output)
- Enables PoE functionality for type c products
- Description:
The Driver adding POE function for traditional USB to Ethernet Adapter
Driver are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet(PoE) standard,
provides a Class 0 signature.
- Application:
- Type c power supply + networking products
- Product Selector
|
Part Number |
Output |
Cable length |
Connector shape |
Ethernet Speed |
USB Data |
|
RT8152_C0.3M_V4.1 |
5V 2A Peak:2.5A |
0.3m |
Type c straight |
10/100Mbps (RJ45) |
2.0 |
|
|
|
|
|
|
|
|
|
Specification |
|
|
1 |
Input Voltage: |
36 to 57 Vdc |
|
2 |
Output power: |
12.5W max. |
|
3 |
Output current and voltage: |
2.5A max. @ 5V |
|
4 |
Ripple: |
Typical 100mVp-p |
|
5 |
Connectors: |
Type C |
|
6 |
Ethernet Supported: |
10/100-Base-T IEEE 802.3af |
|
7 |
PoE Pin Assignment: |
3/6, 1/2 or 4/5, 7/8 |
|
8 |
Storage Temperature: |
-30°C to +80°C |
|
9 |
Operating Humidity: |
10% to 90%, non-condensing |
|
10 |
Storage Humidity: |
5% to 95%, non-condensing |
|
11 |
Emissions & Immunity: |
FCC Part 15 Class A |
|
12 |
Safety: |
CE IEC 60950 |
|
13 |
Reliability MTBF: |
100,000 hours @ 25°C |
|
14 |
Warranty : |
1 Year |
|
15 |
Dimensions: |
Height: 81 mm Width: 28mm Depth: 23mm |
|
16 |
Operating Temperature: |
-10°C to +50°C |
