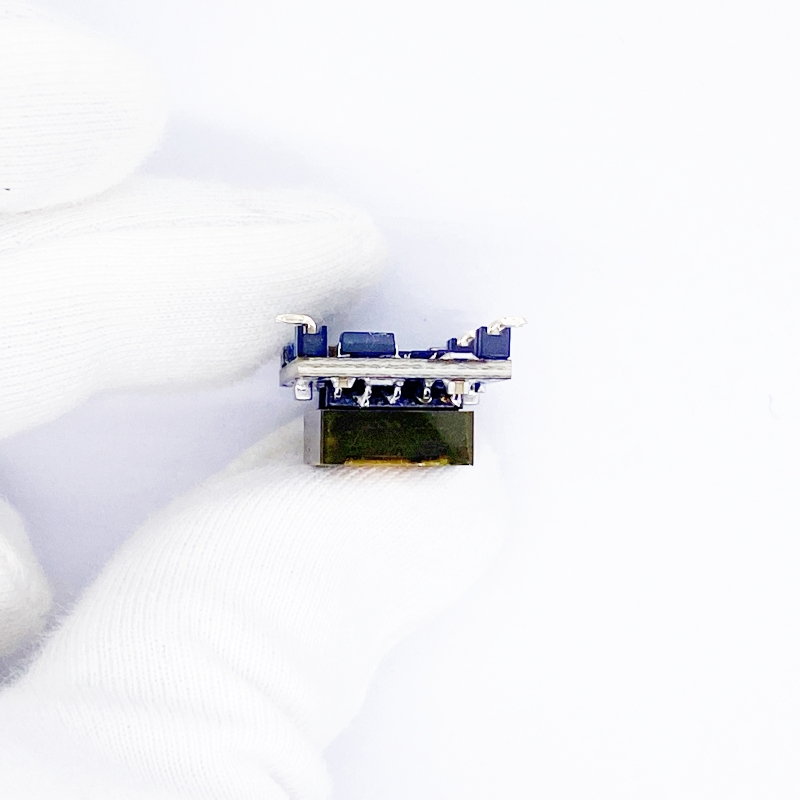

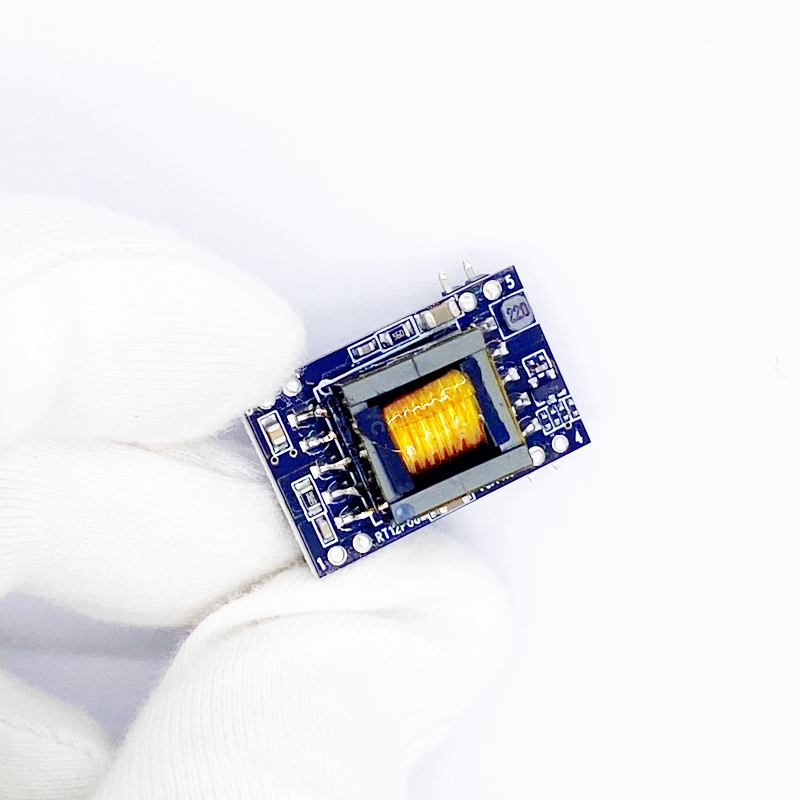

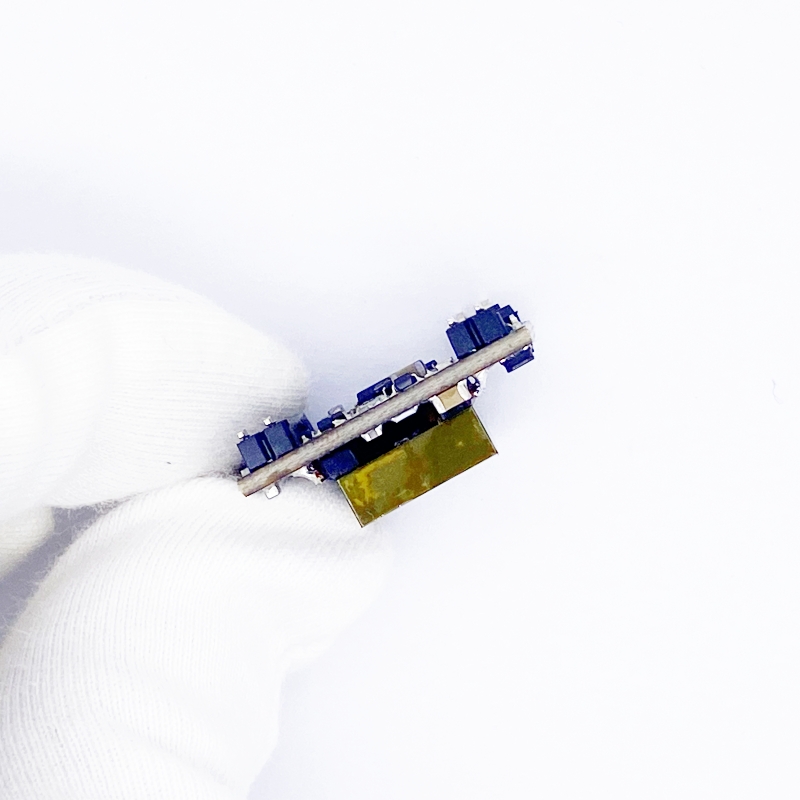

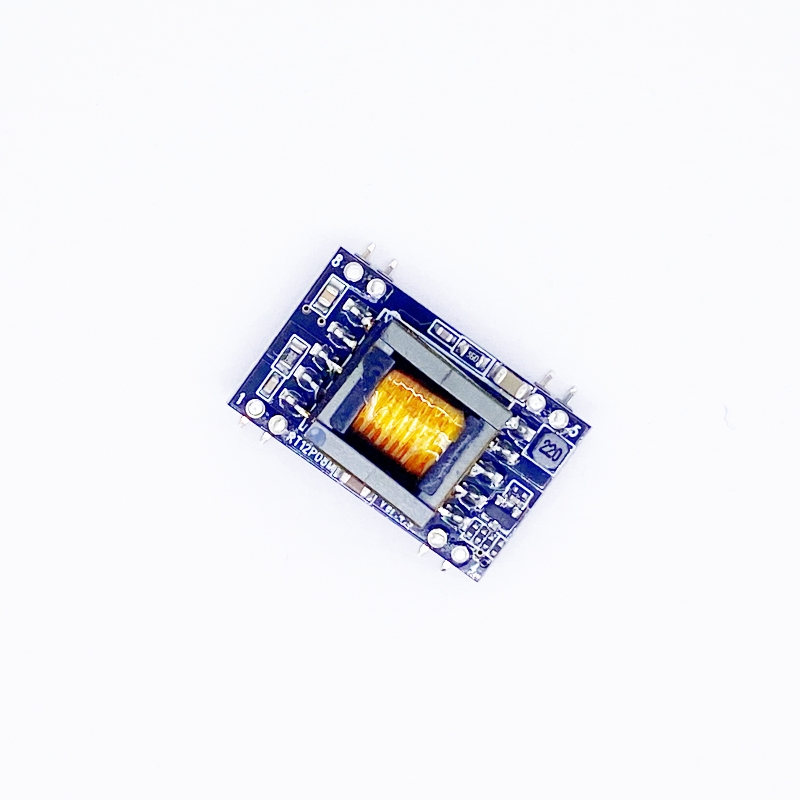

RT12P08M

 12W POE PD Module ( Isolation Model)

Product Description

© 2012 Shenzhen Ring&tone  Electronic Technology Co., Ltd. All rights reserved.

This document contains proprietary information of ring&tone and is not to be disclosed or used without the prior written permission of ring&tone.

Due to update and improvement of ring&tone products and technologies, information in this document is subjected to change without notice.

Features：

• IEEE802.3af compliant
• Input voltage range 36V to 57V
• Integral high efficiency DC/DC converter.
• Low output ripple and noise
• High performance with low price
• Short-circuit protection
• Adjustable Output
• Optional multi-voltage output 3.3V 5V 12V 24V
• Transformer isolation ,1500V isolation (input to output)
• Easy to use, with a minimum number of external components.
• Rohs compliant

Applications：

• IP Cameras
• Wireless access point
• Security and alarm systems
• VOIP telephone
• Point of sale network terminal equipment

Description：

The RT12P08M series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet(PoE) standard.

The RT12P08M signature and control circuit provides the PoE compatibility signature and

power classification required by the Power Sourcing Equipment (PSE) before applying up

to 15W power to the port. The RT12P08M  provides a Class 0 signature.

The DC/DC converter operates over a wide input voltage range and provides a regulated

output. The DC/DC converter also has built-in short-circuit output protection.

• RT12P08M Typical Connection Diagram:
•
• RT12P08MDIP Package(mm ) RT12P08MM Package(mm )
•
•
•
